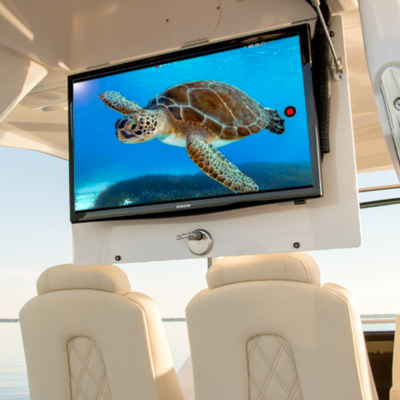

Unlock the full potential of Seavu with the Display Link System, designed to be used with your Seavu Seeker or Explorer Kit to mirror real-time underwater footage from your DJI action camera to a TV, chartplotter, or marine monitor using a compatible Android device.

While mirroring, you can still view and control the livestream on your Android device, adjusting settings, recording, and managing footage in the DJI Mimo app.

The system provides a wired connection from your Android device to the display, ensuring a stable and reliable video feed. It works with Android devices that support USB-C video output and requires the DisplayLink Presenter app (free) from the Google Play Store. Simply connect via cable and mirror your screen for a seamless viewing experience.

Choose the right Display Link System for your setup:

HDMI – For TVs and Modern Displays

This option is best for TVs, marine monitors, and newer chartplotters with HDMI input.

• Direct HDMI connection for a high-quality video feed
• Works with Lowrance HDS-12 Live, HDS-16 Live, Garmin GPSMAP 8400/8600, and Simrad NSS4
• Supports modern marine monitors and TVs with HDMI port

Includes:

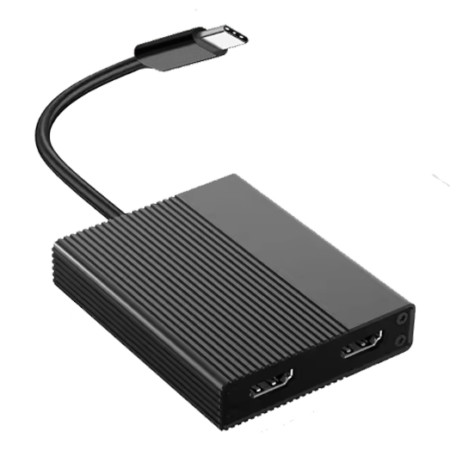

• USB-C HDMI DisplayLink Adapter

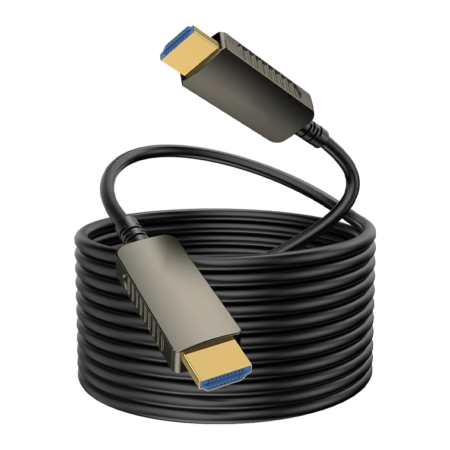

• HDMI Fibre Optic Cable (5, 10, 15 or 20m)

8-Pin RCA Kit – For Simrad Chartplotters

This option is designed for Simrad chartplotters that use an 8-pin NMEA 0183/composite video input.

• Compatible with Simrad NSS evo3/evo3S and NSO evo2/3
• Converts HDMI signal to composite video for Simrad chartplotters
• Requires power via USB-A for the HDMI to RCA Composite Converter

Includes:

• USB-C HDMI DisplayLink Adapter
• HDMI Fibre Optic Cable (5, 10, 15 or 20m)
• HDMI to RCA Composite Converter (USB-powered)
• Simrad 8-Pin Video Adapter Cable

7-Pin RCA Kit – For Lowrance Chartplotters

This option is designed for Lowrance chartplotters that use the 7-pin blue connector for composite video input.

• Compatible with Lowrance HDS-9 Live and older HDS models with RCA video input
• Converts HDMI signal to composite video for Lowrance chartplotters
• Requires power via USB-A for the HDMI to RCA Composite Converter

Includes:

• USB-C HDMI DisplayLink Adapter
• HDMI Fibre Optic Cable (5, 10, 15 or 20m)
• HDMI to RCA Composite Converter (USB-powered)
• Lowrance 7-Pin Video Adapter Cable

Recommended Android Devices

For the best experience, we recommend an Android device with WiFi 6 or 6e, a USB-C video output, a large battery for extended viewing, and Android 8.0 or later. Please see Recommended phones & tablets below for full details.

Most high-end Android devices provide 3–5 hours of continuous use.

Compatibility & Requirements

• Works exclusively with DJI action cameras (via DJI Mimo app)
• Requires Android devices that support USB-C video output
• Requires installation of the free DisplayLink Presenter app from the Google Play Store
• Requires Android 8.0 or later for DisplayLink functionality
• Not compatible with iPhones, iPads or GoPro cameras
• Designed for use with TVs, marine monitors, and chartplotters with compatible inputs

Perfect For:

Fishing and marine use – Monitor bait action, underwater scouting, and structure scanning.
Research and filmmaking – Get a bigger, clearer live feed for analysis.
Boating and inspections – Improve visibility when scouting or inspecting underwater environments.
Charter and tourist operators – Enhance the experience for guests by displaying real-time underwater footage on a larger screen, providing an immersive view of marine life and underwater scenery.

Enhance your Seavu setup with the Display Link System – bringing your underwater footage to life on the big screen.

Note: DisplayLink is a registered trademark of DisplayLink Corp., a subsidiary of Synaptics Incorporated, and is not associated with Seavu.
