Good Design Award
Product, Consumer Electronics - 2023 Winner
"SEAVU redefines underwater visibility and videography by making it affordable, accessible and sustainable for fishers, boaters, researchers and documentary makers."
Explorer+ Pro Kit
General
Model Series
Seavu Explorer+
Product Name
Explorer+ Pro Kit
System Type
DisplayPort wired livestream to monitor, chartplotter, or computer
Compatible Cameras
DJI Action 5 Pro
DJI Action 6
DJI Action 6
Ideal For
Tourism operators, event organisers, marine displays, professional long streaming
Camera Control
Not available – set up camera before sealing
Power Supply
USB-C PD via HDMI Adapter (charger not included)
Waterproof Rating
50 metres

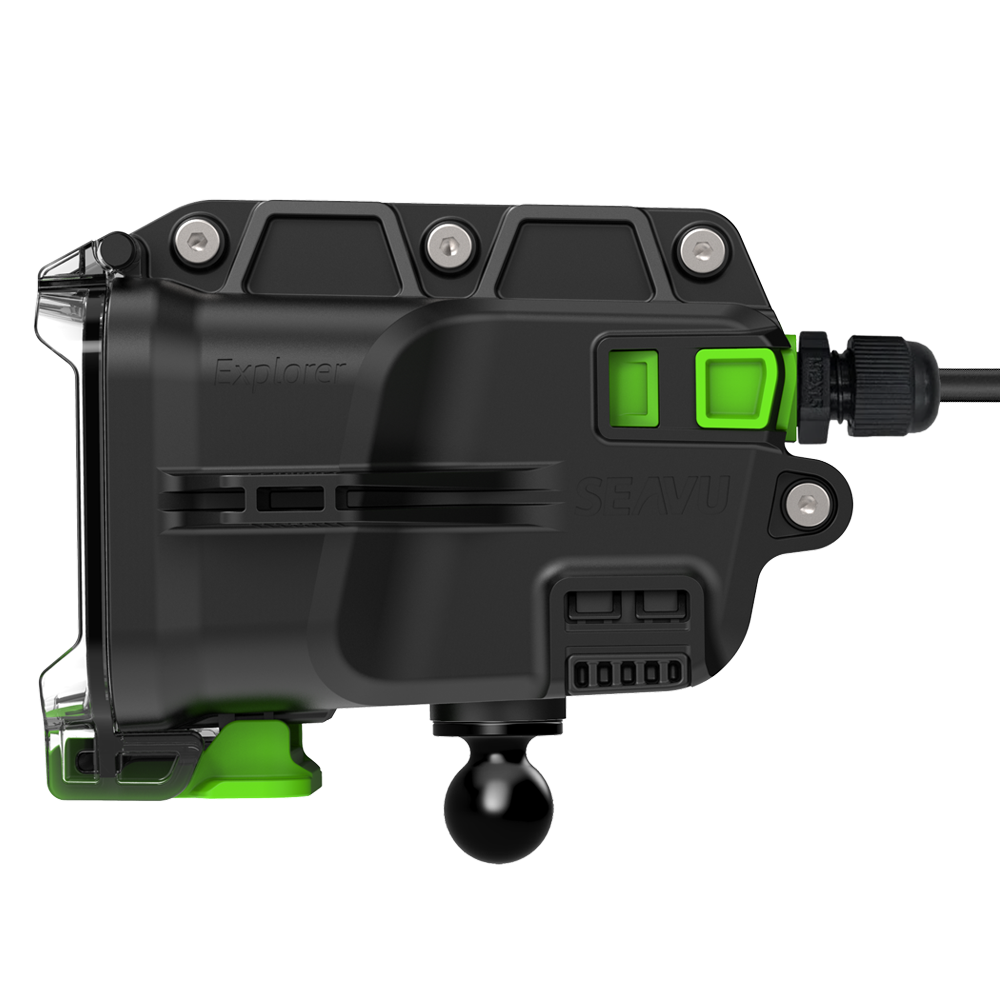

Explorer+ Housing
Material
Marine-grade polycarbonate with 316 stainless steel bolts
Mounting
Seavu Explorer Clip System and 1” RAM ball
Dimensions
Approx. 180 mm × 150 mm × 130 mm
Weight
~240 g (without camera)
Media Cable
Type
Custom Hybrid USB-C Active Fibre-Optic
Length
15 metres (49 feet)
Diameter
6.5mm
Break Strength
10 kg – suitable for fixed setups and low-drag use
Power Delivery
Yes – continuous power to camera via USB-C
Cable Reel
Design & Features
Compact, heavy-duty reel for storing and deploying the 15m USB-C Media Cable
Material
Impact Copolymer and ABS
Dimensions
Ø230mm, width 60mm
DisplayPort HDMI Adapter
Function
Converts USB-C DisplayPort to HDMI with USB-C PD power input
Video Output
HDMI 2.0 – up to 4K resolution
Compatible Outputs
TVs, monitors, HDMI-equipped chartplotters, capture cards, and professional setups like switchers or HDMI to SDI converters
Note: Chartplotters without HDMI require an optional RCA adapter (e.g. Simrad 8-pin or Lowrance 7-pin)
Note: Chartplotters without HDMI require an optional RCA adapter (e.g. Simrad 8-pin or Lowrance 7-pin)
Power Delivery
USB-C PD input (requires 45W charger and cable – not included)
Camera Connection & Output
Camera Connection
USB-C (DisplayPort Alt Mode)
Output Options
DisplayPort (native)
HDMI (via included adapter)
RCA (via optional adapter for chartplotters)
HDMI (via included adapter)
RCA (via optional adapter for chartplotters)
Video Output Resolutions
1080p60
4K60
4K60
Viewing Devices
TV, monitor, computer, or chartplotter
(Non-HDMI chartplotters require an RCA adapter)
(Non-HDMI chartplotters require an RCA adapter)
Recording Method
On computer (via HDMI capture card)
On camera (to microSD card)
On camera (to microSD card)
Field of View
DJI Action 5 Pro
Standard: 136° (default view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)
DJI Action 6
Standard: 136° (default view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)
Package Includes
Explorer+ Underwater Housing
With fixed 15m USB-C fibre-optic Media Cable
DJI Camera Mount
Secure magnetic mount for positioning your DJI camera inside the Explorer+ housing
DisplayPort HDMI Adapter
Includes PD passthrough + HDMI female extension
Cable Reel
Compact, heavy-duty reel for 15m cable
Ball Mount with Arm & Claw
Fully adjustable mounting solution
Seavu Carry Bag
Heavy-duty PVC, roll-top design
Optional Extras
Adapters
4K HDMI Capture Card
Chartplotter RCA Adapter (Simrad/Lowrance)
HDMI Splitter
Chartplotter RCA Adapter (Simrad/Lowrance)
HDMI Splitter
Cables
HDMI 2.1 Fibre-optic Extension
5m USB-C PD Charging Cable
5m USB-C PD Charging Cable
Mounts & Stability
Drift Fin
Pole Mount
800g Explorer Weight
Pole Mount
800g Explorer Weight
Lighting
Explorer Video Lights (10,000 lumens combined)
Power Requirements
DisplayPort HDMI Adapter + Camera
Requires 45W+ GaN USB-C PD charger
Use 60W or 100W-rated USB-C cable
Use 60W or 100W-rated USB-C cable
HDMI Splitter
Requires basic USB-C charger (5V/1A or 5W+)
12V Setup (Boats)
Use 12V USB-C PD charger or portable power station
Cables and Splitters
Direct Connection
DisplayPort HDMI Adapter connects to TV, monitor, chartplotter, or video capture card
Extended Viewing Distance
HDMI 2.1 fibre-optic cable enables uncompressed 4K video over long distances
Multiple Screens
HDMI Splitter mirrors feed to multiple screens (requires 5W+ USB-C charger)
Wireless Option
Wireless HDMI (e.g. Hollyland Pyro H 4K) supported, may add latency
Use Cases
Professional Filmmaking
Livestream or record high-resolution underwater footage directly to monitors or capture devices for immediate review and editing

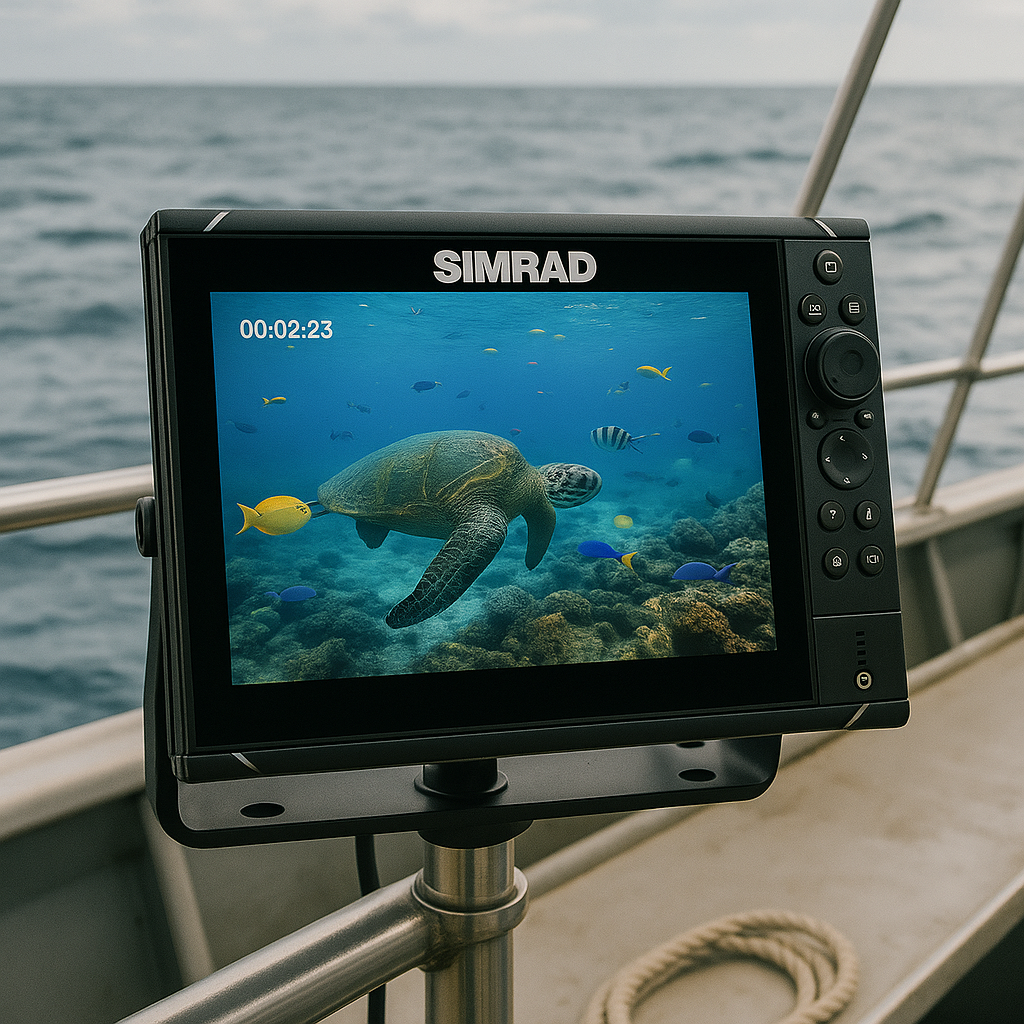

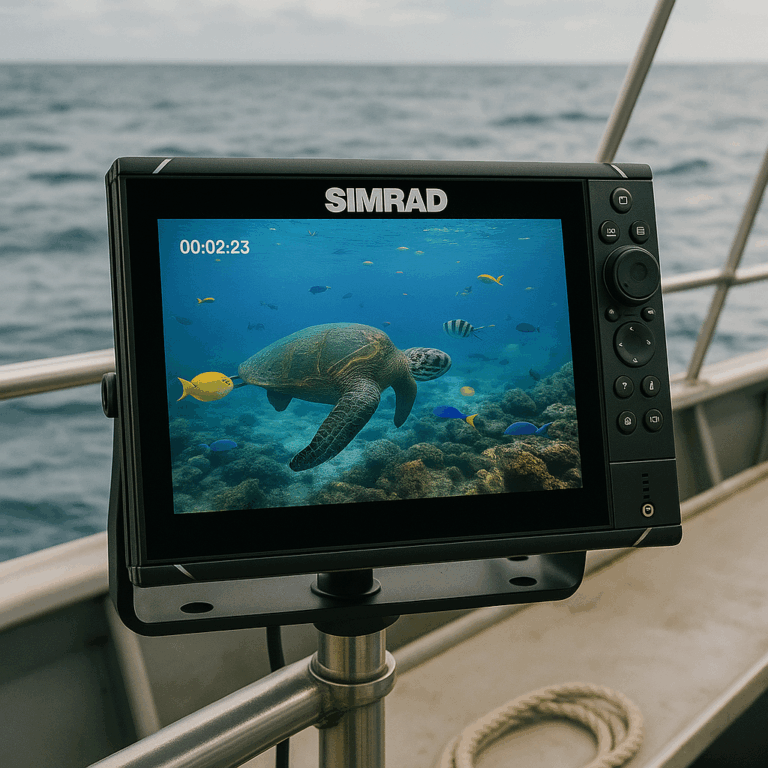

Marine Research
Capture long-duration studies or real-time behavioural observations with continuous power and stable video feeds
Underwater Events
Broadcast live underwater views at aquariums, public aquatics, or ocean events using monitors, TVs, or projectors
Commercial Inspections
Inspect underwater infrastructure, ports, or aquaculture setups with precision and extended runtime
Training & Education
Display live underwater demonstrations on screen for student engagement and technique analysis

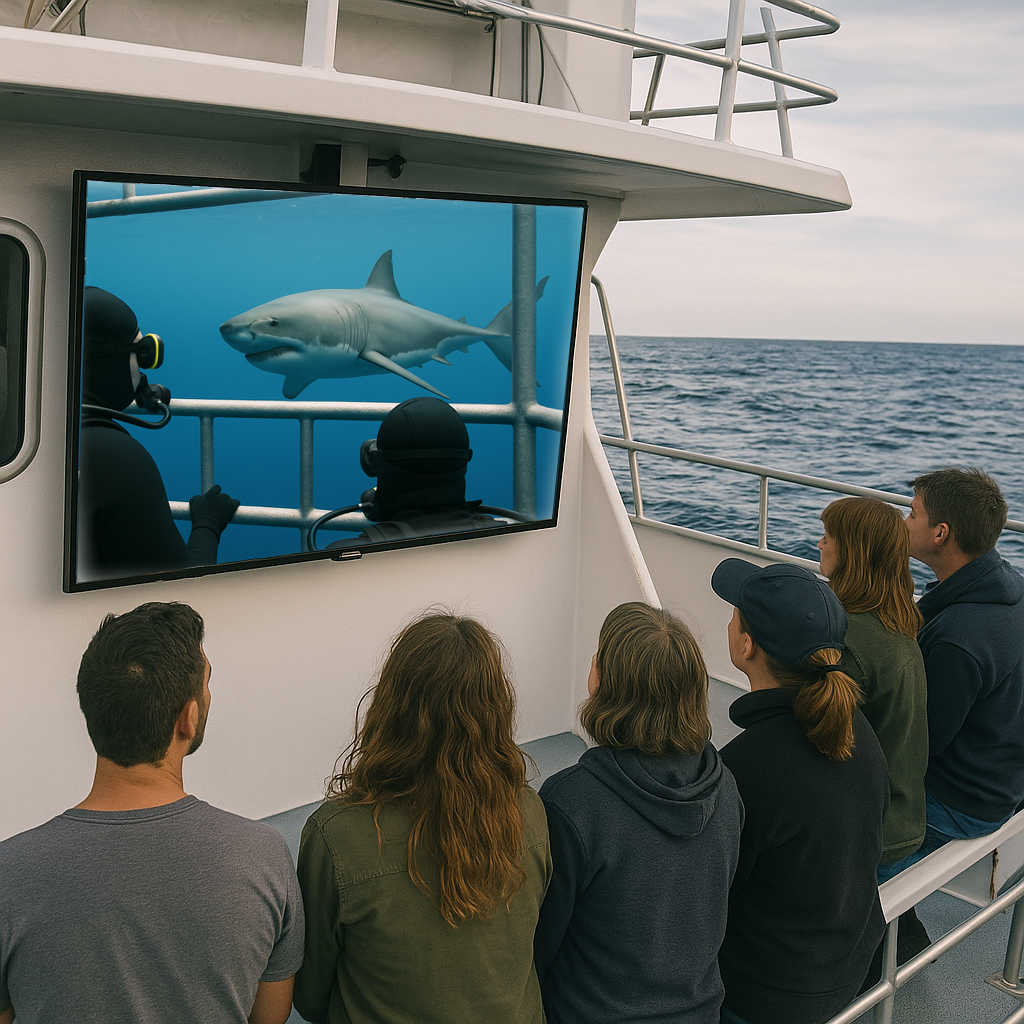

Tourism & Attractions
Enhance guest experiences with live displays of marine life from glass-bottom boats, pontoons, or dive platform
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
1-1 of 1 review

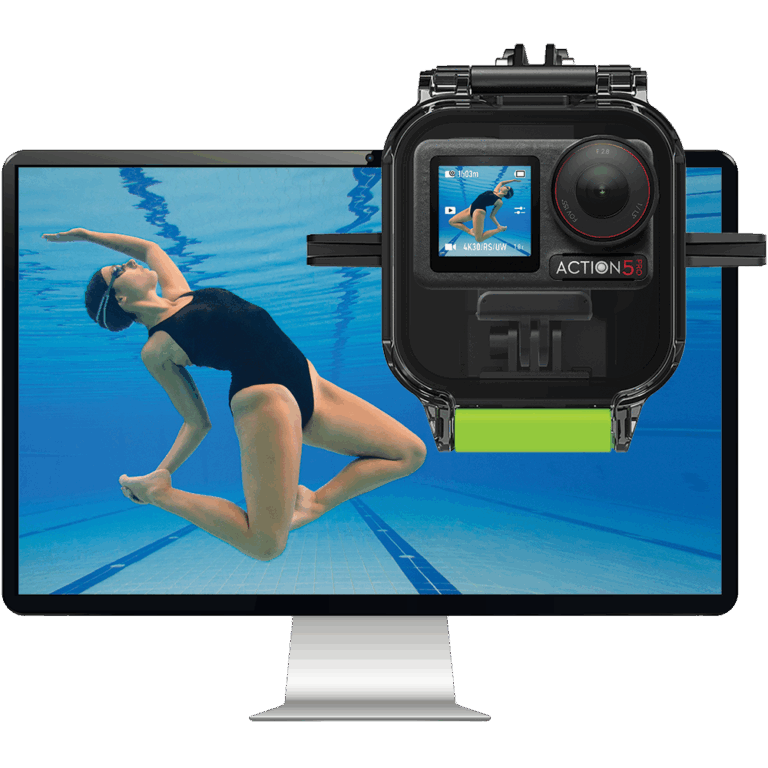

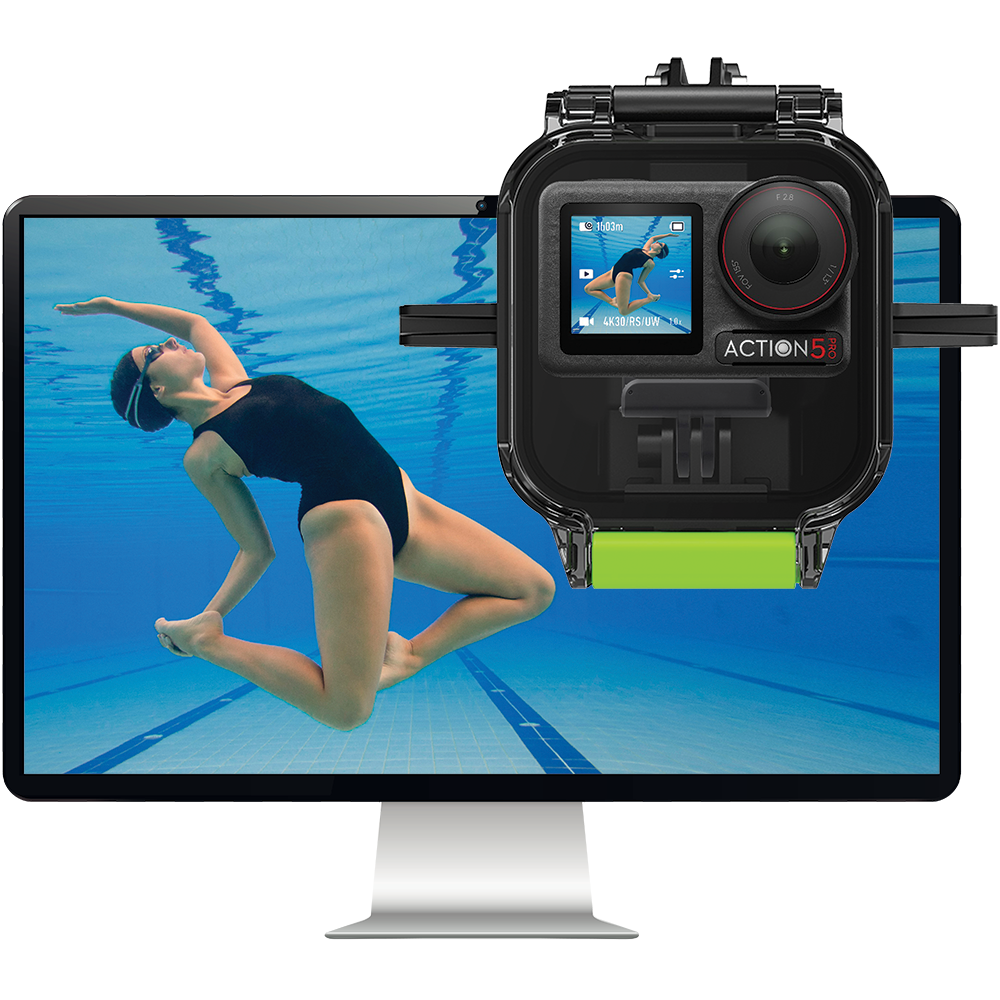

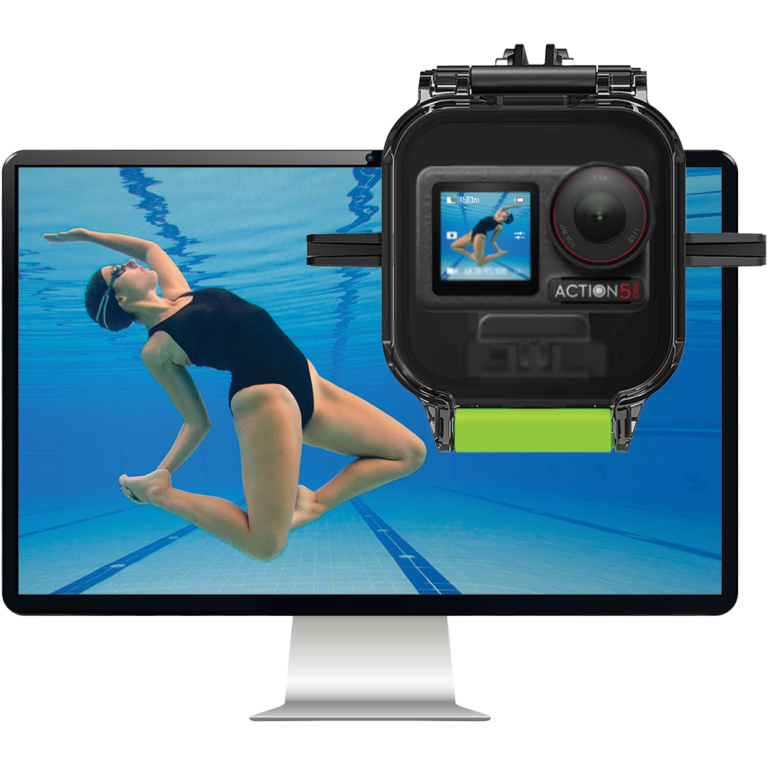

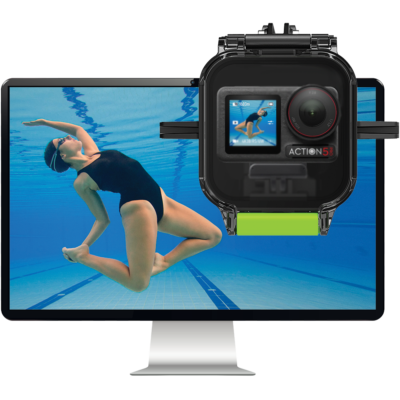

A professional underwater camera system with HDMI output and continuous power
View clear live underwater video on a TV, monitor, chartplotter, or computer, with continuous camera power through a single cable.
The Explorer+ Pro Kit is designed for professional live production, underwater events, inspections, research, and filmmaking, where a stable, high quality video feed is critical.
At the core of the system is the Seavu Media Cable, a purpose built 15m fibre optic USB C cable that supports DisplayPort output while also supplying power to the camera. This allows uninterrupted underwater viewing, recording, and broadcasting.
The kit is designed specifically for DJI Osmo Action 5 Pro and DJI Osmo Action 6, which feature built in DisplayPort output. This enables a direct wired connection from your camera to an external screen, giving you clear, uncompressed live video from beneath the surface.
Built for real world use
- Underwater events
- Professional filming and livestreaming
- Marine research and observation
- Underwater inspections
- Chartplotter, monitor, TV, and computer viewing
- Production and broadcast style workflows
Important to know
- Designed for DJI Osmo Action 5 Pro and DJI Osmo Action 6
- Supports continuous camera power through the Media Cable
- Depending on your setup, USB C chargers and cables may be required
- Camera, computer, chartplotter, monitor, and TV are not included
Why choose the Explorer+ Pro Kit
- Continuous camera power
Keep your camera powered through the Media Cable for longer viewing, recording, and broadcasting sessions - Professional HDMI output
Connect to TVs, monitors, chartplotters, computers, video switchers, and livestream hardware - Clear, uncompressed video
Designed for high quality live viewing where image clarity and reliability matter - Single cable simplicity
Transmit video and power through one purpose built 15m fibre optic USB C Media Cable - Built for professional workflows
Ideal for underwater events, research, inspections, livestreaming, and production environments where stable live video is critical
Compatible with DJI Action 5 Pro and 6
Stream to computer or TV
Underwater camera housing
Clip on mounting system
A$1,499
In stock and ready for fast dispatch
Worldwide shipping - FREE within Australia
Orders ship within 24 business hours. Satisfaction guaranteed - Love it or return it within 14 days for a full refund.
In stock and ready for fast dispatch

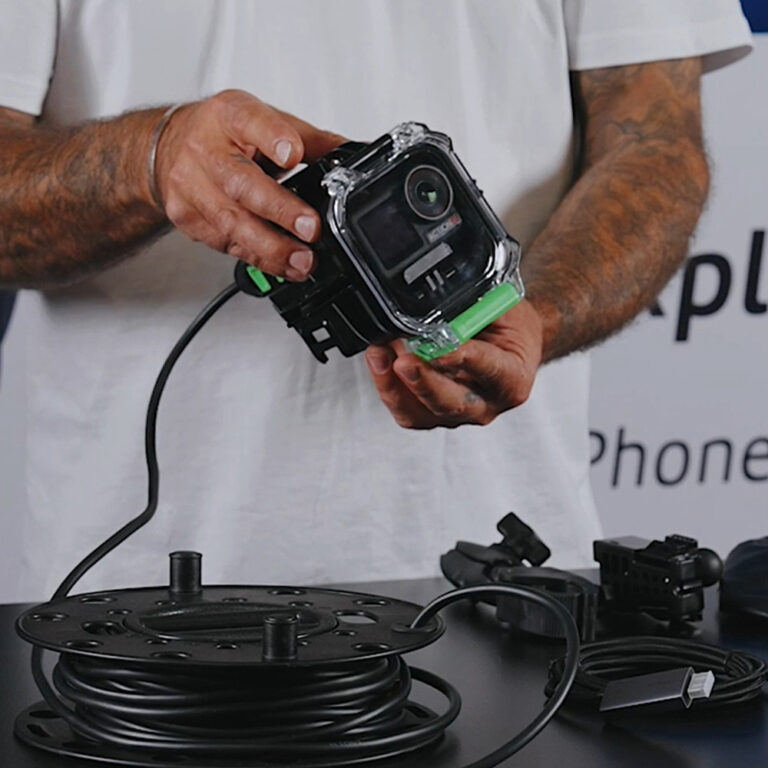

Package Includes
Seavu Explorer+ (USB-C, 15m)
Underwater camera housing with an integrated 15m USB-C Fibre Optic Media Cable for high-quality video and continuous power.
Explorer+ Hand Reel
Stores up to 25m of cable – compact, durable, and built for marine use.
Explorer Ball Mount, Arm & Claw
Complete mounting system that clamps to rails or poles, offering smooth 360° adjustment.
DisplayPort HDMI Adapter (with PD)
Converts USB-C DisplayPort to HDMI for video and camera power – includes HDMI female-to-female extension adapter.
Seavu Carry Bag
Dry bag for Seavu kit and accessories.
Action camera compatibility
Recommended action cameras highlighted
Camera Model
Connection Type
Camera Mount
Video Outputs
DJI Action 6
USB-C (DisplayPort + PD)
Explorer DJI Camera Mount
1080p 60fps or 4K 60fps
DJI Action 5 Pro
USB-C (DisplayPort + PD)
Explorer DJI Camera Mount
1080p 60fps or 4K 60fps
Explorer+ uses DisplayPort over USB C, a newer video standard for action cameras, which is converted to HDMI for viewing. This is supported by DJI Action 5 Pro and Action 6, but not currently available on GoPro cameras.
Best underwater camera guide
Recommended TVs, monitors & computers
Recommended TV’s
Device
Connection
Notes
Samsung QLED 4K & 8K Series
HDMI (2.0 / 2.1)
Ensure HDMI port supports 4K input
LG OLED C1, C2, G3 Series
HDMI (2.0 / 2.1)
Supports uncompressed 4K video
Sony Bravia XR Series
HDMI (2.0 / 2.1)
Excellent 4K display compatibility
TCL 6-Series (2021+)
HDMI 2.1
Budget-friendly 4K performance
Recommended Monitors
Device
Connection
Notes
Dell UltraSharp U2723QE
HDMI 2.0
USB-C/DisplayPort also supported
ASUS ProArt Display PA32UCG
HDMI 2.1
Ideal for high-end production monitoring
LG UltraFine 4K/5K
HDMI 2.0 / USB-C
Sharp, colour-accurate display
BenQ PD3220U
HDMI 2.0 / DisplayPort
Great balance of colour & performance
Recommended Computers (for Capture Card use)
Device
Connection
Recommended Software
MacBook Pro (M1/M2/M3)
USB-A or USB-C (with adapter)
OBS Studio, QuickTime, VLC
Windows Laptops (Intel i7/Ryzen 7+)
USB-A 3.0
OBS Studio, VLC, XSplit
Apple Mac Mini (M1/M2)
USB-A
OBS Studio
Custom PCs (with USB 3.0)
USB-A
OBS Studio, vMix, Zoom
Notes:
- For 4K viewing or recording, ensure your TV or monitor supports HDMI 2.0 or higher.
- For computer use, a 4K video capture card and USB 3.0 port are required.
- Recommended software: OBS Studio, VLC, Zoom, or other UVC-compatible tools.
Compare Seavu kits
Feature
Seeker Marine Kit
Explorer Adventure Kit
Explorer+ Pro Kit
Explorer+ Adventure Kit
Viewing Device
Phone or tablet (iOS & Android) using camera app
Phone or tablet (iOS & Android) using camera app
Computer (via software) or TV/Monitor
Computer (via software) or TV/Monitor
Underwater Livestream
Yes – via camera app on mobile device
Yes – via camera app on mobile device
Yes – direct video feed via USB-C and HDMI connection
Yes – direct video feed via USB-C and HDMI connection
Camera Control
Full control via app
Full control via app
Not available
Not available
Compatible Cameras
GoPro HERO and DJI Osmo Action series
GoPro HERO and DJI Osmo Action series
DJI Action 5 Pro, Action 6
DJI Action 5 Pro, Action 6
Cable & Connection
Action Cable (WiFi/Bluetooth)
Action Cable (WiFi/Bluetooth)
Media Cable (USB-C) + Adapters
Media Cable (HDMI)
Cable Length
3m, 7m, 17m, 27m, 52m
17m, 27m
15m
25m, 50m
Cable Strength
10kg – Light, flexible, great for mounting
50kg – Heavy-duty for fishing, drifting, and trolling
10kg – Suitable for fixed setups and low-drag use
100kg – Heavy-duty for fishing, drifting, and trolling
Power to Camera
No – relies on internal battery
No – relies on internal battery
Yes – via USB-C power adapter (not included)
No – relies on internal battery
Recording Method
On camera (SD card)
On camera (SD card)
On camera or computer
On camera or computer
Mounting & Application
Mounts to almost anything via GoPro-style mount
Extensive options: fins, weights, poles, stands, 1” RAM mounts
Fixed setups: supports poles, 1” RAM ball mounts
Extensive options: fins, weights, poles, stands, 1” RAM mounts
Use Case
Fishing, research, inspections, filmmaking, exploring
Fishing, research, inspections, filmmaking, exploring
Professional video, events, training and coaching, and film making
Fishing, research, inspections, filmmaking, exploring
Got a question?
Meet the Explorer+ Pro Kit
Our Story
Used By Marine Enthusiasts Worldwide
CORE77 Design Awards
A/V & Photography Equipment - 2023 Winner
"The Seavu platform is a groundbreaking approach to enhancing underwater visibility, setting a new benchmark in the realm of aquatic exploration."
What Our Customers Are Saying
Seavu
47 reviews
Paul ELSMERE
Verified ownerGreat customer service and quick delivery would definitely recommend SEAVU.
3 weeks ago
Robin Pla
Verified ownerAll the customer services were good !
1 month ago
Dallas Rowley
Verified ownerWhen I saw Seavu on Instagram, I got SUUUPER excited because I had tried making my own version and failed. Seavu honestly does not disappoint, they thought of everything, and the quality of the components are commercial grade. Such a magical feeling to be dry above the surface, while exploring the mysterious depths below :)
3 months ago
Damian Barton
Verified ownerAn absolute amazing people to deal with, they go above and beyond to help. Would 100 percent recomend them. Their products are top quality.
4 months ago
Jonathan
Verified ownerSeavu is something that is good way to get into underwater videos and images. And if you are curious of what is under the surface or trying to find something this works great.
Here is also a video of my first use :
https://www.instagram.com/reel/DRFxJnaChJr/?igsh=MWdtNDZpeDdrbWRpbw==
6 months ago
Need help choosing a Seavu Kit?
Answer a few quick questions for a personalised recommendation.

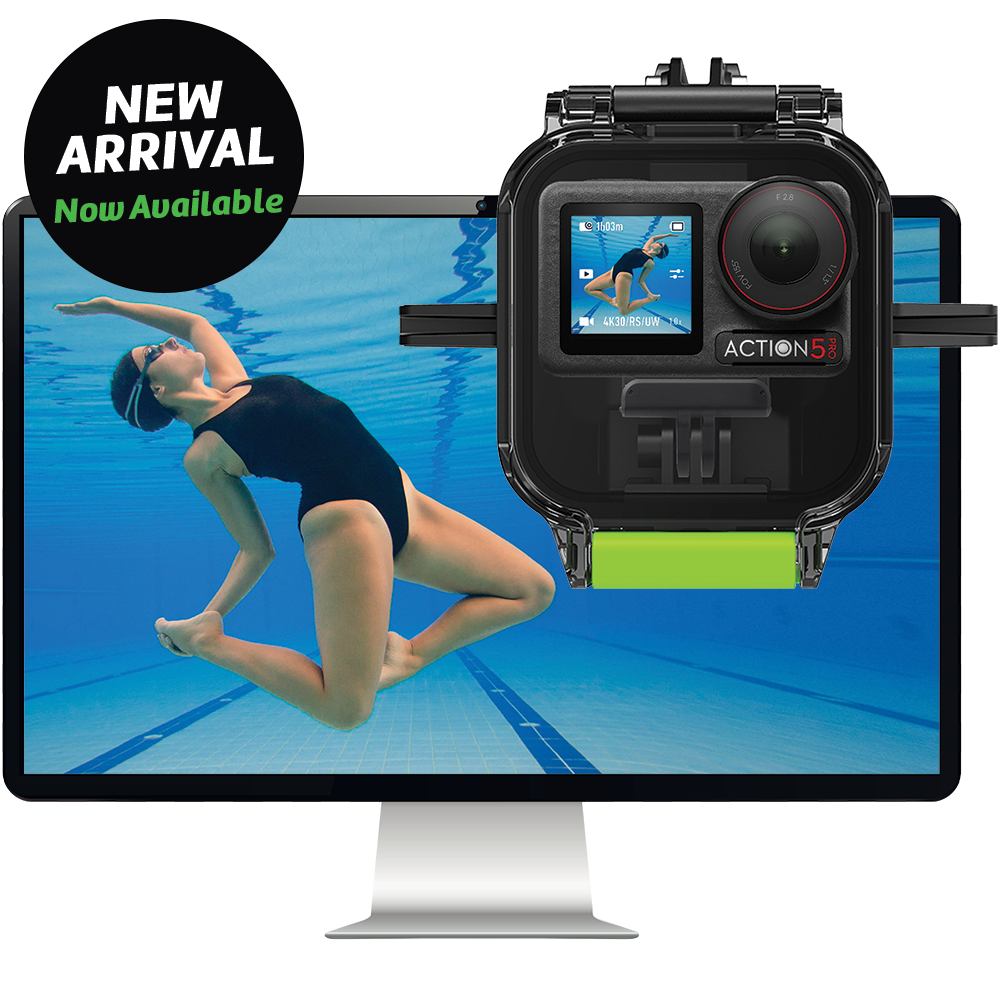

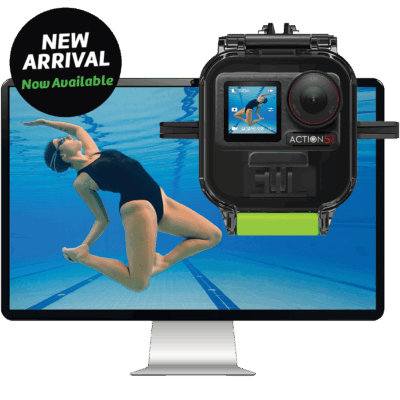

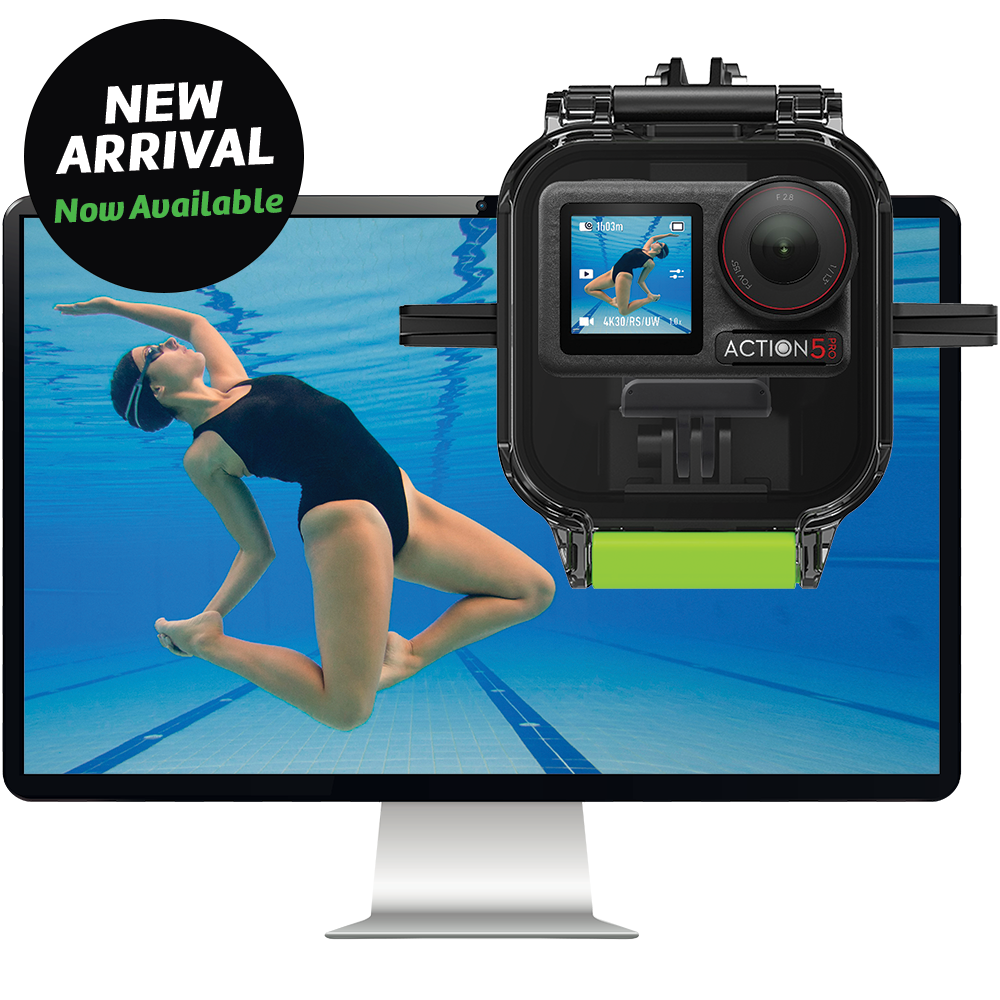

Explorer+ Pro Kit
Professional underwater camera system with continuous power and HDMI output for live viewing on TVs, chartplotters, and computers.
Compatible with DJI Action 5 Pro and 6
Stream to computer or TV
Underwater camera housing
Clip on mounting system
A$1,499
In stock and ready for fast dispatch
Worldwide shipping - FREE within Australia
Orders ship within 24 business hours. Satisfaction guaranteed - Love it or return it within 14 days for a full refund.
In stock and ready for fast dispatch
We used the Explorer+ Pro Kit to livestream underwater footage at a swim event, and it worked really well. Setup was quick, the video quality looked great, and it connected up to our TVs and laptop without any issues.
We’ll definitely use it again for future events.
