Explorer+ Adventure Kit

(Based on all reviews)

General

Model Series
Seavu Explorer+
Product Name
Explorer+ Adventure Kit
Compatible Cameras
DJI Action 5 Pro
DJI Action 6
Ideal For
Tourism operators, fishing, reseach, marine displays, professional streaming
Camera Control
Not available – set up camera before sealing
Power Supply
No external power required – camera runs on battery
Waterproof Rating
50 metres

Explorer+ Housing

Material
Marine-grade polycarbonate with 316 stainless steel bolts
Mounting
Seavu Explorer Clip System with a wide range of attachments
Dimensions
Approx. 180 mm × 150 mm × 130 mm
Weight
~240 g (without camera)

Media Cable

Type
Custom HDMI 2.1 Armoured Active Hydrid Fibre-Optic
Length
25m (82ft), 50m (164ft)
Diameter
5mm
Break Strength
100 kg
Power Delivery
No

Hand Reel

Design & Features
Compact, heavy-duty reel for storing and deploying the 25m HDMI Media Cable
Material
Impact Copolymer and ABS
Dimensions
Ø230mm, width 60mm

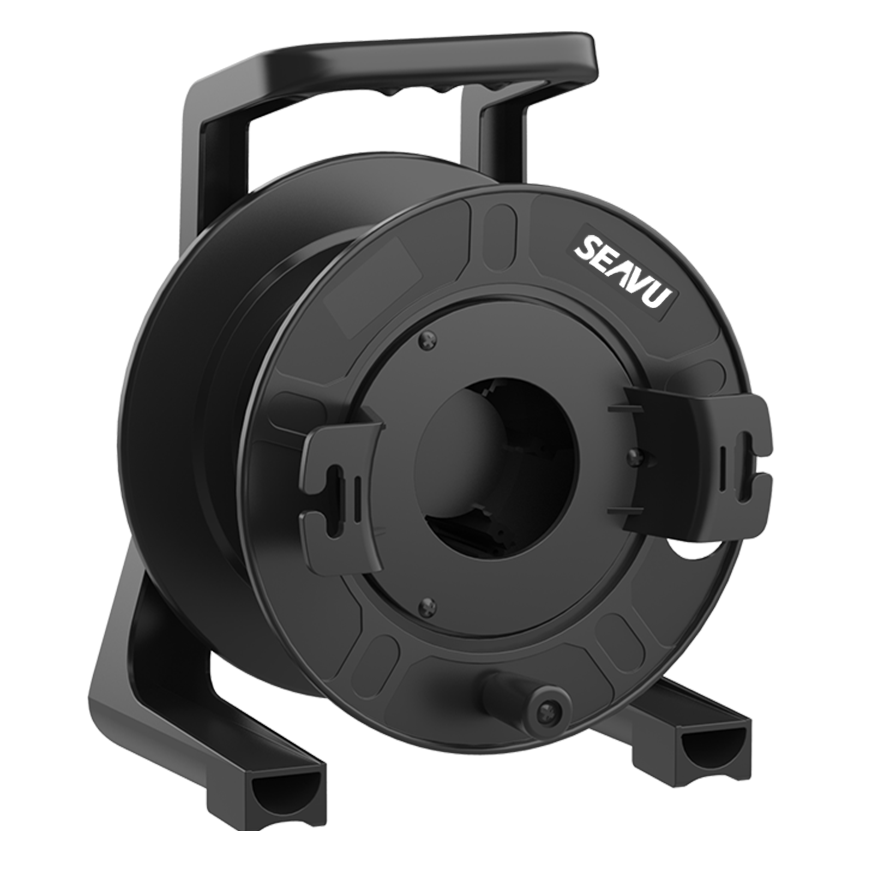

Cable Reel

Design & Features
Robust cable drum with integrated handle and brake, for storing up to 50m HDMI Media Cable
Material
Polycarbonate
Dimensions
Ø235, 235mm(w) x 313mm(h) x 206mm(d)

DisplayPort HDMI Adapter (intergrated)

Function
Converts USB-C DisplayPort to HDMI
Video Output
HDMI 2.0 – up to 4K resolution
Compatible Outputs
TVs, monitors, HDMI-equipped chartplotters, capture cards, and professional setups like switchers or HDMI to SDI converters
Note: Chartplotters without HDMI require an optional RCA adapter (e.g. Simrad 8-pin or Lowrance 7-pin)
Power Delivery
No

Camera Connection & Output

Camera Connection
USB-C (DisplayPort Alt Mode)
Output Options
DisplayPort (native)
HDMI (via included adapter)
RCA (via optional adapter for chartplotters)
Video Output Resolutions
1080p60
4K60
Viewing Devices
TV, monitor, computer, or chartplotter
(Non-HDMI chartplotters require an RCA adapter)
Recording Method
On computer (via HDMI capture card)
On camera (to microSD card)

Field of View

DJI Action 5 Pro
Standard: 136° (default view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)
DJI Action 6
Standard: 136° (default view)
Wide: 155° (maximum field of view)
Linear: 109° (distortion-free view)

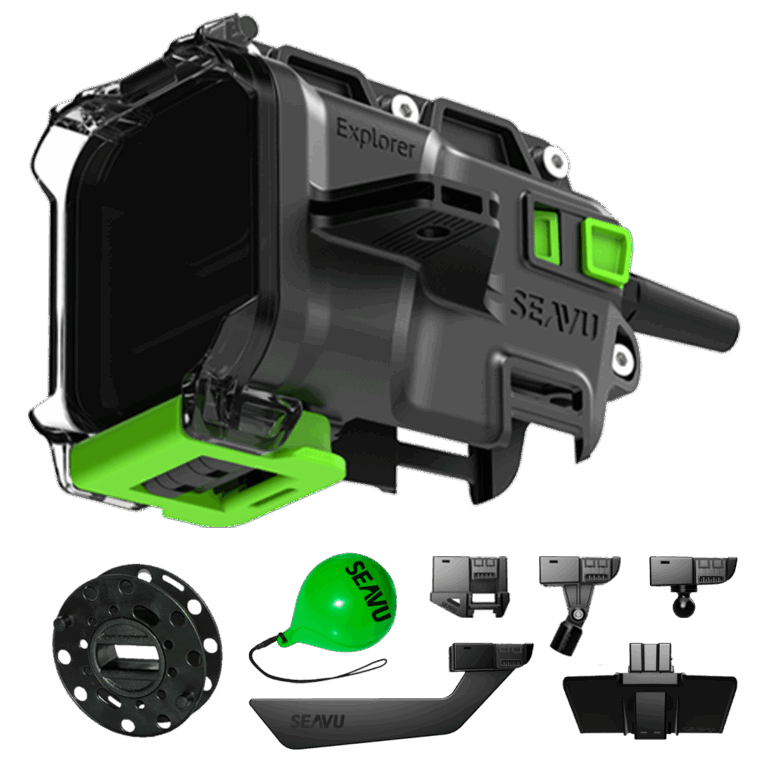

Package Includes

Explorer+ Underwater Housing
With intergrated DisplayPort adapter and fixed 25m or 50m HDMI fibre-optic Media Cable
DJI Camera Mount
Secure magnetic mount for positioning your DJI camera inside the Explorer+ housing
Drift Fin
Aligns Explorer with the current for head-on footage of marine life
Troll Fin
Keeps Explorer steady 1–2m below surface at up to 10 knots while trolling
Explorer Weight
800g clip-on weight for buoyancy control. Stackable for stronger currents
Release Clips (Small + Large)
Position your bait or lure perfectly in frame. Adjustable tension for drifting and trolling
Seavu Buoy
Suspends the Explorer at your preferred depth for steady viewing and exploration
Pole Mount
Mount for painter poles or telescopic poles. Adjustable angle
Ball Mount
RAM B-size ball mount for 360° camera positioning
Cable Loop Fastener
Secures your Explorer+ during deployment
Carry Case
Hard-shell, water-resistant case with EVA foam. Stores the Explorer and all accessories
Reel (Hand or Cable)
Hand Reel (25m) – Compact reel
Cable Reel (50m) – Durable reel with locking system

Optional Extras

Adapters
4K HDMI Capture Card
Chartplotter RCA Adapter (Simrad/Lowrance)
HDMI Splitter
Cables
HDMI 2.1 Fibre-optic Extension
Additional Weight
800g stackable clip-on weight for added stability in strong currents
Seafloor Stand
Marine-grade stand with foldable legs and adjustable mount, stable in currents
Burley Pot
Clips to Seafloor Stand to attract marine life into the camera frame
Explorer Video Lights
Explorer Video Lights (10,000 lumens combined)

Cables and Splitters

Direct Connection
HDMI cable connects to TV, monitor, chartplotter, or video capture card
Extended Viewing Distance
HDMI 2.1 fibre-optic cable enables uncompressed 4K video over long suface distances
Multiple Screens
HDMI Splitter mirrors feed to multiple screens (requires 5W+ USB-C charger)
Wireless Option
Wireless HDMI (e.g. Hollyland Pyro H 4K) supported, may add latency

Use Cases

Fishing
Ideal for drifting, trolling, or anchoring — capture fish and bait action in real-time
Exploring & Research
Monitor marine environments, behaviour, or habitats with live footage
Underwater Inspections
Check boat hulls, moorings, aquaculture setups, or submerged infrastructure
Filmmaking
Capture cinematic underwater shots with full control of framing and timing

Real time underwater vision, fully equiped, with long range HDMI output

Purpose built for fishing, marine exploration, inspections, research, and filming, the Seavu Explorer+ Adventure Kit delivers clear live underwater video directly to a TV, monitor, chartplotter, or computer. It provides the simplicity and versatility of the Explorer Adventure Kit combined with the advanced HDMI output found in the Explorer+ range, giving you a powerful real time viewing system for depths up to 50m.

At the centre of the system is the Seavu HDMI Media Cable — a super thin, high strength fibre optic cable available in 25m or 50m lengths. It features a 100kg break strain for reliable use at depth and while towing, and it provides an uncompressed HDMI feed directly to a compatible HDMI screen. This ensures a stable and clear underwater view for both recreational and professional use.

The Explorer+ Adventure Kit uses the same Explorer+ housing designed for the DJI Osmo Action 5 Pro and DJI Osmo Action 6, both of which feature a built in DisplayPort output. This enables a direct wired connection from the camera to your external screen through the HDMI Media Cable. Unlike the Explorer+ Pro Kit, this version does not supply power to the camera, so users simply swap batteries every one to two hours during longer sessions.

HDMI output makes the system easy to integrate into a wide range of setups:

TVs and monitors:
Connect directly using the included DisplayPort HDMI Adapter. View live underwater footage on any HDMI display. Your camera can record to its SD card while sending the live feed.

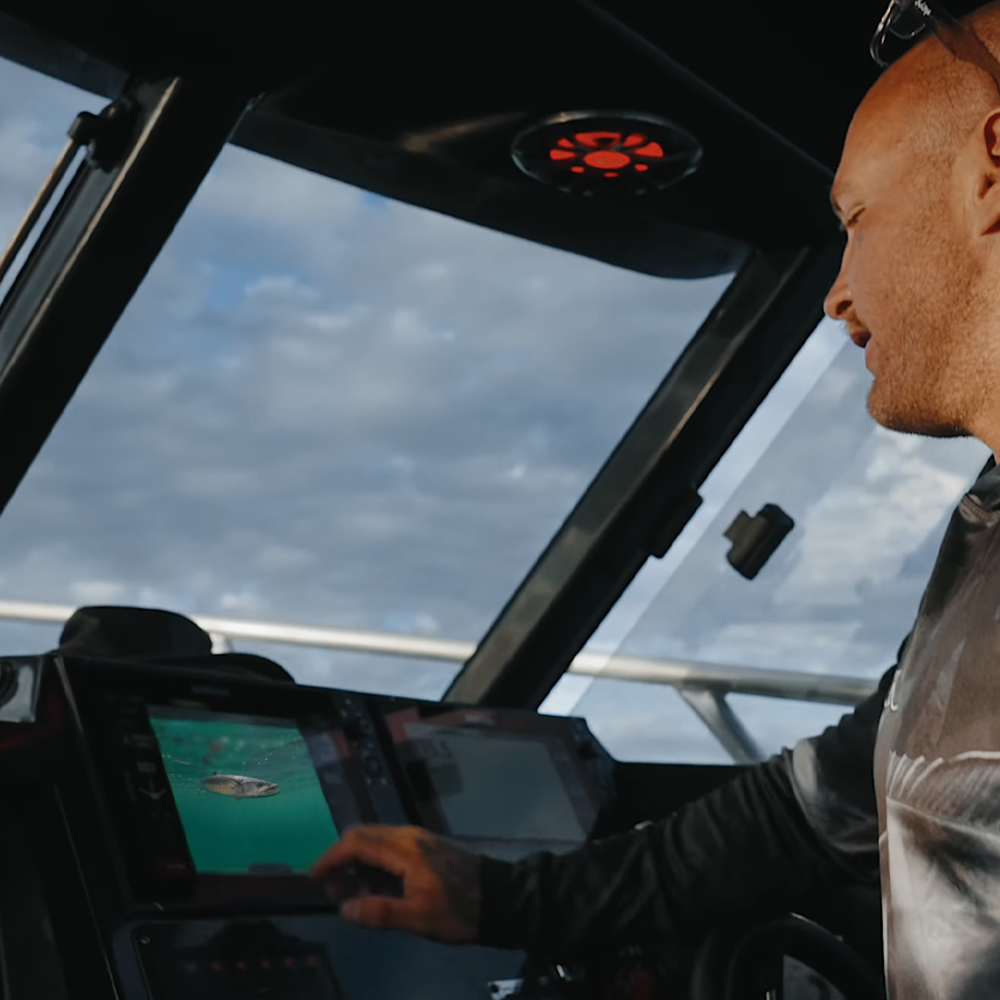

Chartplotters:
Chartplotters with HDMI input connect directly using the same adapter. For models without HDMI input, optional RCA adapters may be used. This allows real time underwater viewing next to your sonar and chart data.

Computers:
For computer viewing, an optional video capture card enables recording or livestreaming in software such as OBS or VLC.

Professional workflows:
The HDMI signal can be integrated into video switchers, converters, and livestream hardware for more advanced filming or research setups.

The kit includes all Explorer Adventure accessories including the Weighted Trolling Fin, Drift Fin, Pole Mount, and stabilising weight. This gives you the flexibility to drift, troll, tow, pole mount, or deploy the camera from a stationary position with smooth and predictable movement underwater.

With reliable HDMI output, a strong deep rated cable, and a fully featured accessory system, the Explorer+ Adventure Kit provides stable, clear, real time underwater viewing for a wide range of on water activities.

Please note: The camera runs on its internal battery and does not receive power through the HDMI Media Cable. Camera, monitor, computer, and chartplotter not included.


Perfect for

Fishing, exploring, inspections, research, filming, and any activity where a clear and stable underwater video feed is needed. The Explorer+ Adventure Kit is ideal for users who want long range HDMI viewing without the need for continuous power delivery.

If you would like a version that transmits WiFi to a phone or tablet, please see Explorer Adventure Kit

Compatible with DJI Action 5 Pro and 6
Stream to HDMI screen or computer
Underwater camera housing
Clip on fins & mounts

A$1,499

Pay in 4 interest-free payments

In stock and ready for fast dispatch

Worldwide shipping - FREE within Australia
Available Now – Limited Stock!
  • *Cable length

    Reset options

    Add a Video Capture Card

    4K Video Capture Card for computer use. See info for details.

    Add a Chartplotter Adapter

    Enables connection to compatible Simrad or Lowrance chartplotters with RCA video input. See info for details.

    Add Cables and Splitters

    HDMI surface extension cables, along with HDMI splitters for multiple screens. See info for full details.

    Add Mounts

    Select to view details and add it to your kit.

    Add Lights

    Select to view details and add it to your kit.

    Add Anti-Fog

    Select to view details and add it to your kit.

Need a quote?
Add to cart and select "Generate a Quote" at checkout.

Package Includes

Action camera compatibility

Recommended action cameras highlighted

Camera Model
Connection Type
Camera Mount
Video Outputs
DJI Action 6
USB-C (DisplayPort Alt Mode)
Explorer DJI Camera Mount
1080p 60fps or 4K 60fps
DJI Action 5 Pro
USB-C (DisplayPort Alt Mode)
Explorer DJI Camera Mount
1080p 60fps or 4K 60fps

Explorer+ uses DisplayPort over USB C, a newer video standard for action cameras, which is converted to HDMI for viewing. This is supported by DJI Action 5 Pro and Action 6, but not currently available on GoPro cameras.

Recommended TVs, monitors & computers

Recommended TV’s

Device
Connection
Notes
Samsung QLED 4K & 8K Series
HDMI (2.0 / 2.1)
Ensure HDMI port supports 4K input
LG OLED C1, C2, G3 Series
HDMI (2.0 / 2.1)
Supports uncompressed 4K video
Sony Bravia XR Series
HDMI (2.0 / 2.1)
Excellent 4K display compatibility
TCL 6-Series (2021+)
HDMI 2.1
Budget-friendly 4K performance

Recommended Monitors

Device
Connection
Notes
Dell UltraSharp U2723QE
HDMI 2.0
USB-C/DisplayPort also supported
ASUS ProArt Display PA32UCG
HDMI 2.1
Ideal for high-end production monitoring
LG UltraFine 4K/5K
HDMI 2.0
Sharp, colour-accurate display
BenQ PD3220U
HDMI 2.0
Great balance of colour & performance

Recommended Computers (for Capture Card use)

Device
Connection
Recommended Software
MacBook Pro (M1/M2/M3)
USB-A or USB-C (with adapter)
OBS Studio, QuickTime, VLC
Windows Laptops (Intel i7/Ryzen 7+)
USB-A 3.0
OBS Studio, VLC, XSplit
Apple Mac Mini (M1/M2)
USB-A
OBS Studio
Custom PCs (with USB 3.0)
USB-A
OBS Studio, vMix, Zoom

Notes:

  • For 4K viewing or recording, ensure your TV or monitor supports HDMI 2.0 or higher.
  • For computer use, a 4K video capture card and USB 3.0 port are required.
  • Recommended software: OBS Studio, VLC, Zoom, or other UVC-compatible tools.

Compare Seavu kits

Feature
Seeker Marine Kit
Explorer Adventure Kit
Explorer+ Pro Kit
Explorer+ Adventure Kit
Viewing Device
Phone or tablet (iOS & Android) using camera app
Phone or tablet (iOS & Android) using camera app
Computer (via software) or TV/Monitor
Computer (via software) or TV/Monitor
Underwater Livestream
Yes – via camera app on mobile device
Yes – via camera app on mobile device
Yes – direct video feed via USB-C and HDMI connection
Yes – direct video feed via USB-C and HDMI connection
Camera Control
Full control via app
Full control via app
Not available
Not available
Compatible Cameras
GoPro HERO and DJI Osmo Action series
GoPro HERO and DJI Osmo Action series
DJI Action 5 Pro, Action 6
DJI Action 5 Pro, Action 6
Cable & Connection
Action Cable (WiFi/Bluetooth)
Action Cable (WiFi/Bluetooth)
Media Cable (USB-C) + Adapters
Media Cable (HDMI)
Cable Length
3m, 7m, 17m, 27m, 52m
17m, 27m
15m
25m, 50m
Cable Strength
10kg – Light, flexible, great for mounting
50kg – Heavy-duty for fishing, drifting, and trolling
10kg – Suitable for fixed setups and low-drag use
100kg – Heavy-duty for fishing, drifting, and trolling
Power to Camera
No – relies on internal battery
No – relies on internal battery
Yes – via USB-C power adapter (not included)
No – relies on internal battery
Recording Method
On camera (SD card)
On camera (SD card)
On camera or computer
On camera or computer
Mounting & Application
Mounts to almost anything via GoPro-style mount
Extensive options: fins, weights, poles, stands, 1” RAM mounts
Fixed setups: supports poles, 1” RAM ball mounts
Extensive options: fins, weights, poles, stands, 1” RAM mounts
Use Case
Fishing, research, inspections, filmmaking, exploring
Fishing, research, inspections, filmmaking, exploring
Professional video, events, training and coaching, and film making
Fishing, research, inspections, filmmaking, exploring

Unleash the Depths

Our Story

What The Experts Are Saying

What Our Customers Are Saying

Need help choosing a Seavu Kit?

Get instant guidance on this page, or use Find My Kit for a personalised recommendation.

Explorer+ Adventure Kit

Explorer+ Adventure Kit

Cable Reel Options

Select from 25m or 50m cable lengths.

25m (82ft) Hand Reel

  • Includes a hand reel, ideal for use on kayaks, personal watercraft, or boats.

50m (164ft) Cable Reel

  • Includes a robust cable reel designed for boat use.
  • Deep-sea operations with drift fin may require additional weights (available separately).

Shipping Information

Australia
Free Australia Post Parcel Post (1–5 business days)

New Zealand
A$50 AusPost International Express (4–7 business days)
A$100 DHL Express (1–3 business days)

United States

A$150 DHL Express (3–6 business days)
USA, United States Minor Outlying Islands

Canada

A$100 AusPost International Express (5–9 business days)
A$150 DHL Express (3–6 business days)

Asia Pacific

A$100 AusPost International Express (3–6 business days)
A$150 DHL Express (2–5 business days)
American Samoa, Bangladesh, Cambodia, Cook Islands, Fiji, French Polynesia, Guam, Hong Kong, India, Indonesia, Japan, Kiribati, Laos, Macao, Malaysia, Maldives, Marshall Islands, Micronesia, Nauru, Nepal, New Caledonia, Niue, North Korea, Northern Mariana Islands, Pakistan, Palau, Papua New Guinea, Philippines, Pitcairn, Samoa, Singapore, Solomon Islands, South Korea, Sri Lanka, Taiwan, Thailand, Timor Leste, Tokelau, Tonga, Tuvalu, Vanuatu, Vietnam, Wallis and Futuna.

UK & Europe

A$100 AusPost International Express (5–10 business days)
A$150 DHL Express (4–7 business days)
United Kingdom, Albania, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Montenegro, Netherlands, North Macedonia, Norway, Poland, Portugal, Romania, Russian Federation, Serbia, Slovakia, Spain, Sweden, Switzerland, Turkey, Ukraine.

Rest of World (A)

A$150 AusPost International Express (6–12 business days)
A$200 DHL Express (5–9 business days)
Argentina, Aruba, Bahamas, Bahrain, Barbados, Belize, Bermuda, Brazil, Cape Verde, Cayman Islands, Chile, Colombia, Costa Rica, Croatia, Curacao, Dominican Republic, Ecuador, Egypt, Faroe Islands, French Guiana, Georgia, Gibraltar, Greenland, Guadeloupe, Guatemala, Guyana, Honduras, Israel, Jamaica, Jordan, Kazakhstan, Kuwait, Lebanon, Malaysia, Martinique, Mauritius, Mexico, Morocco, Oman, Panama, Peru, Puerto Rico, Qatar, Reunion, Saint Kitts and Nevis, Saint Lucia, Saint Martin (French part), Saint Pierre and Miquelon, Saint Vincent and the Grenadines, Saudi Arabia, Seychelles, South Africa, Suriname, Trinidad and Tobago, Tunisia, Turks and Caicos Islands, United Arab Emirates, Uruguay, Venezuela, Virgin Islands (British), Virgin Islands (US).

Rest of World (B)

A$250 AusPost International Express (8–16 business days)
A$300 DHL Express (7–14 business days)
Afghanistan, Algeria, Angola, Anguilla, Antigua and Barbuda, Armenia, Ascension and Tristan da Cunha, Azerbaijan, Belarus, Benin, Bhutan, Bolivia, Burkina Faso, Burundi, Cameroon, Central African Republic, Chad, Comoros, Congo (Democratic Republic), Congo (Republic), Cote d’Ivoire, Cuba, Djibouti, Dominica, Eswatini, Ethiopia, Falkland Islands (Malvinas), Gabon, Gambia, Ghana, Grenada, Guinea, Guinea-Bissau, Haiti, Holy See, Iran, Kenya, Kyrgyzstan, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Moldova, Mongolia, Montserrat, Mozambique, Myanmar (Burma), Namibia, Nicaragua, Niger, Nigeria, Paraguay, Rwanda, Saint Helena, Sao Tome and Principe, Senegal, Sierra Leone, Somalia, Sudan, Syria, Tajikistan, Tanzania, Togo, Turkmenistan, Uganda, Uzbekistan, Yemen, Zambia, Zimbabwe.

Taxes & Duties

The shipping cost does not include any potential charges such as fees, taxes (e.g., VAT), or duties imposed by your country on international shipments. These charges differ from one country to another. It is your responsibility to cover these additional expenses, so please ensure you are ready to pay any customs fees or local taxes required to receive your package.

How long does it take?

Delivery times range from 1 to 15 business days, depending on your location. We use Australia Post for domestic shipping, and DHL Express or AusPost International Express for international orders.

Delays may occur due to customs processing, which is outside our control.

Tracking

You will receive an e-mail containing your tracking number as soon as your order has been shipped.

Cable Reel Options

Video Capture Card (4k)

Only required if you’re connecting your Explorer+ Kit to a computer.

A video capture card enables high-quality livestreaming and recording to a computer via software like OBS, Zoom, VLC, or QuickTime.

Use your own (must support USB 3.0, 4K input, and 4K recording), or add this compact, premium-grade 4K Video Capture Card with USB-A and USB-C connections.

For professional workflows, the HDMI signal can also be connected directly to video switchers (such as the Blackmagic ATEM Mini Pro) or HDMI to SDI converters (like the Blackmagic Micro Converter) — no capture card required in these setups

Cables and Splitters

Direct Connection
The included HDMI cable connects to your TV, monitor, selected chartplotters, or video capture card.

Extended Viewing Distance
Add a HDMI 2.1 fibre-optic cable for long-distance runs — uncompressed 4K video with minimal signal loss.

Multiple Screens
Use an HDMI splitter to display footage on multiple screens without reducing quality. Requires 5W or higher USB-C charger, not included.

Wireless Option
Wireless HDMI systems (like the Hollyland Pyro H 4K) offer cable-free viewing with great range and image quality. While we don’t offer these, they’re a convenient option — though they may introduce slight latency. Fibre-optic remains the most reliable for real-time monitoring.

Chartplotter guide

The Explorer+ Adventure Kit outputs HDMI video. Use this guide to choose the right connection for your display.



HDMI (No Adapter Required)

Connects directly to displays with an HDMI input.

Compatible Displays: Lowrance HDS-12 Live, HDS-16 Live, Garmin GPSMAP 8400/8600, Simrad NSS 4, TVs and monitors with HDMI

Lowrance 7-Pin RCA Adapter

For Lowrance chartplotters with a 7-pin blue composite video input.

Includes: HDMI to RCA adapter, Lowrance 7-pin video cable
Compatible Displays: HDS-9 Live, older HDS models

Simrad 8-Pin RCA Adapter

For Simrad units with an 8-pin NMEA/composite video input.

Includes: HDMI to RCA adapter, Simrad 8-pin video cable
Compatible Displays: NSS evo3, evo3S, NSS 4, NSO evo2, NSO evo3



Note: You may need a HDMI extension cable between your DisplayPort HDMI adapter and the RCA adapter or chartplotter. The required length will depend on your setup and the size of your boat.

Your cart is currently empty.

Select Your Preferred Currency

To make things easier, choose the currency you’d like to view prices in.
Converted prices are estimates using today's exchange rate. All checkout prices, payments, and invoices are in AUD.
